SPECIFICATIONS

Aerial Photography: Yes

Aircraf Operating Frequency: 2.4 GHz

Brand Name: NONE

Camera Features: 2k

Camera Mount Type: Fixed Camera Mount

Category: Camera Drone

Connectivity: Remote Control

Display Control: Yes

Drone Weight: <249g

Equipped with Aerosol Spraing System/Spread Tank Volume: No

Flight Time: 40min

GPS: Yes

High-concerned chemical: None

Integrated propeller guard: Include

Max Takeoff Weight: <1kg

Max Wind Speed Resistance: 20 - 30 KM/H

Motor Type: Brushless Motor

Obstacle avoidance types: Visual Avoidance

Origin: US(Origin)

Remote Distance: 4km

Sensor Size: None

Video Maximum Resolution[Pixel X Pixel]: 2K（2560*1440）

Spec5 Raven UAS: Copilot Airborne Mesh Relay & Reconnaissance Platform

The Spec5 Raven UAS is a lightweight, GPS-stabilized unmanned aerial system engineered to combine aerial reconnaissance with off-grid mesh network extension. Each kit includes the Spec5 Copilot connectivity module, transforming the Raven into a fully integrated airborne LoRa mesh relay capable of enhancing situational awareness in disconnected environments.

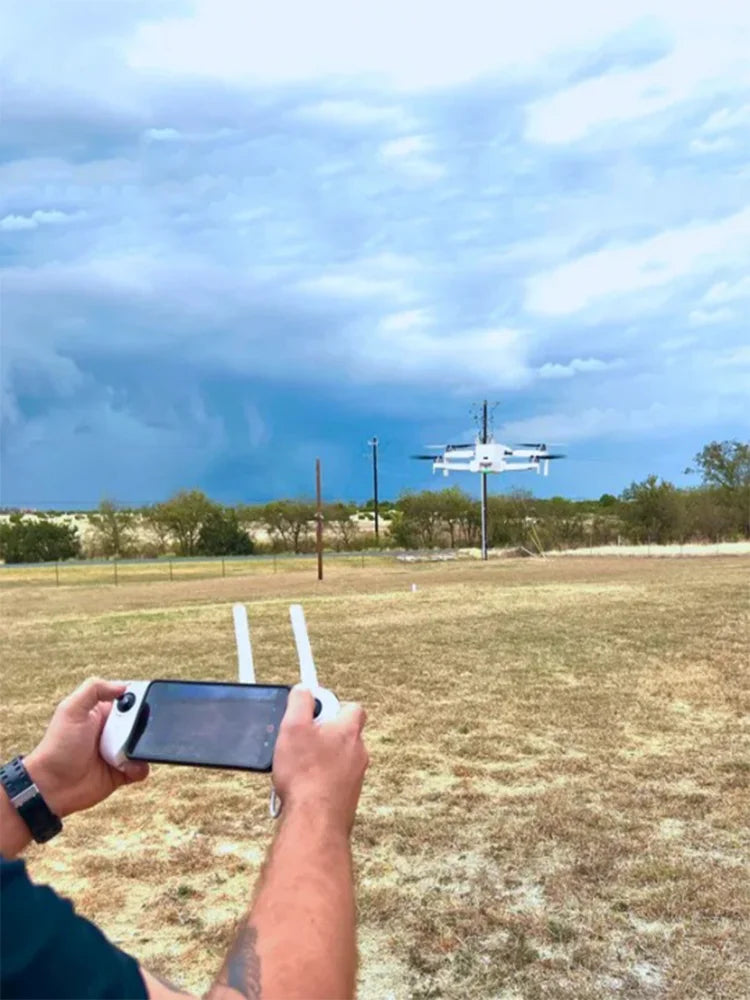

Designed for mobility, endurance, and rapid deployment, Raven UAS enables field teams, emergency responders, and technical operators to extend ground-based mesh networks while simultaneously capturing stabilized aerial imagery. With up to 40 minutes of flight time and a long-range digital video link, Raven UAS delivers reliable performance in dynamic operational environments.

• Extended Flight Endurance: Powered by a 3000 mAh removable Li-ion battery, Raven UAS provides up to 40 minutes of flight time per charge, enabling sustained overwatch and wide-area coverage.

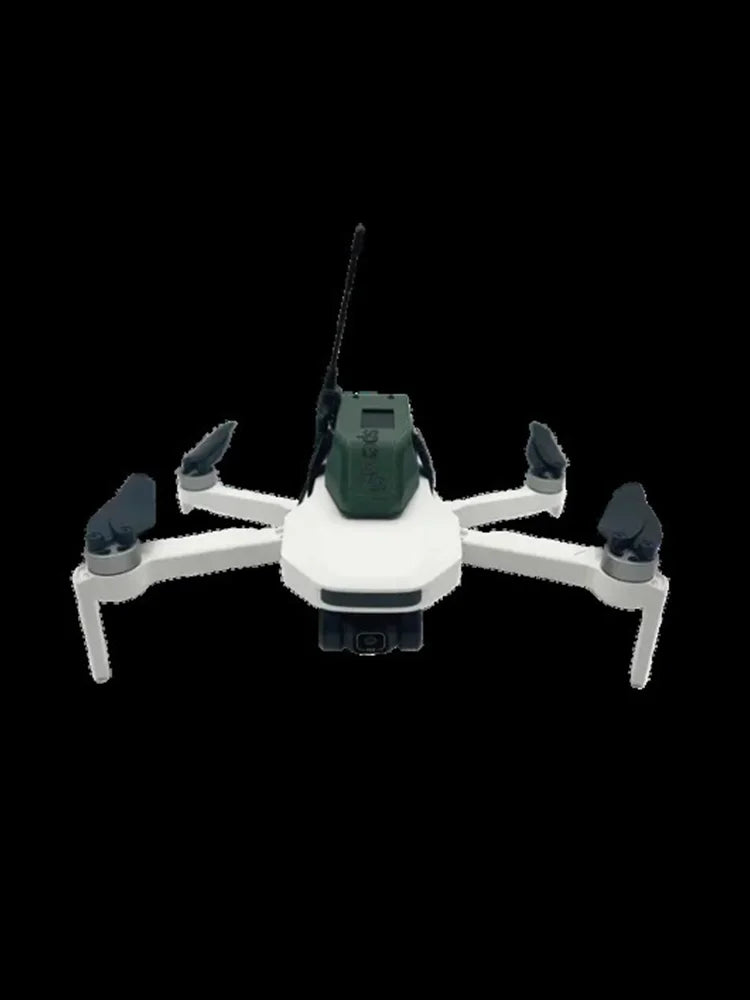

• Airborne Mesh Relay: Integrated Spec5 Copilot module allows the drone to operate as an elevated LoRa mesh repeater. Extend network range, relay GPS telemetry between nodes, and improve connectivity over terrain, vegetation, or urban obstacles. Compatible with Meshtastic and ATAK integrations.

• Stabilized 2.5K Aerial Imaging: Equipped with a high-resolution stabilized camera delivering 2.5K video and approximately 12 MP stills. Electronic Image Stabilization ensures smooth footage and reliable observation capability.

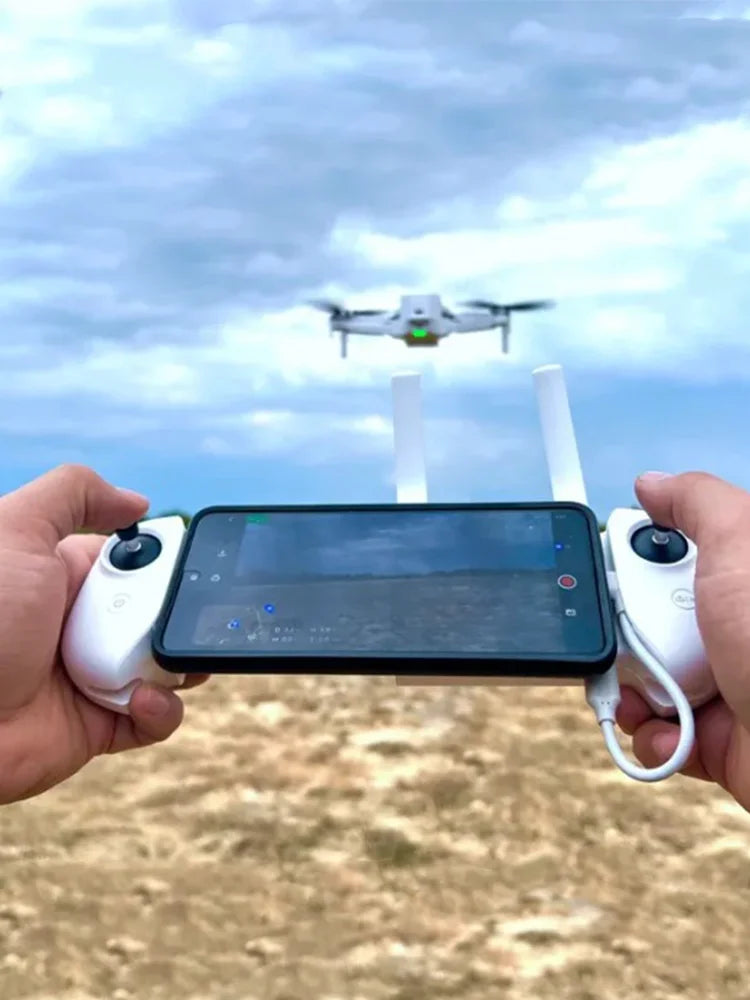

• Long-Range Digital Transmission: PixSync 2.0 digital link provides live video and control up to 4 km (line-of-sight, subject to local regulations), maintaining situational awareness well beyond the launch point.

• GPS-Assisted Flight & Intelligent Modes: Integrated GPS + GLONASS + GNSS support stable positioning, return-to-home, waypoint navigation, orbit mode, altitude hold, follow-me mode, and one-key takeoff/landing for simplified operation.

• Portable & Rapid Deployment: Sub-249 g foldable airframe packs compactly for transport and deploys within seconds, making it ideal for mobile teams and fast-response scenarios.

• Specifications: Model: Raven UAS (Sub-250 g GPS Platformattention), Material: High-strength engineering plastic, Weight: <249 g, Folded Dimensions: ~18 × 12.5 × 7 cm, Unfolded Dimensions: ~36 × 34 × 7 cm, Motor Type: High-efficiency brushless, Battery: 7.2–7.4 V 3000 mAh Li-ion (removable), Flight Time: Up to 40 minutes, Charging Time: ~90 minutes, Control Range: Up to 4 km (LOS), Wind Resistance: Moderate, Camera: Integrated stabilized 2.5K, Resolution: 2.5K video / ~12 MP stills, Field of View: ~118°, Stabilization: Electronic Image Stabilization, Camera Tilt: −90° to +20°, GPS: GPS + GLONASS + GNSS, Operating Frequencies: 2.4GHz / 5GHz, App Support: Multi-language compatibility.

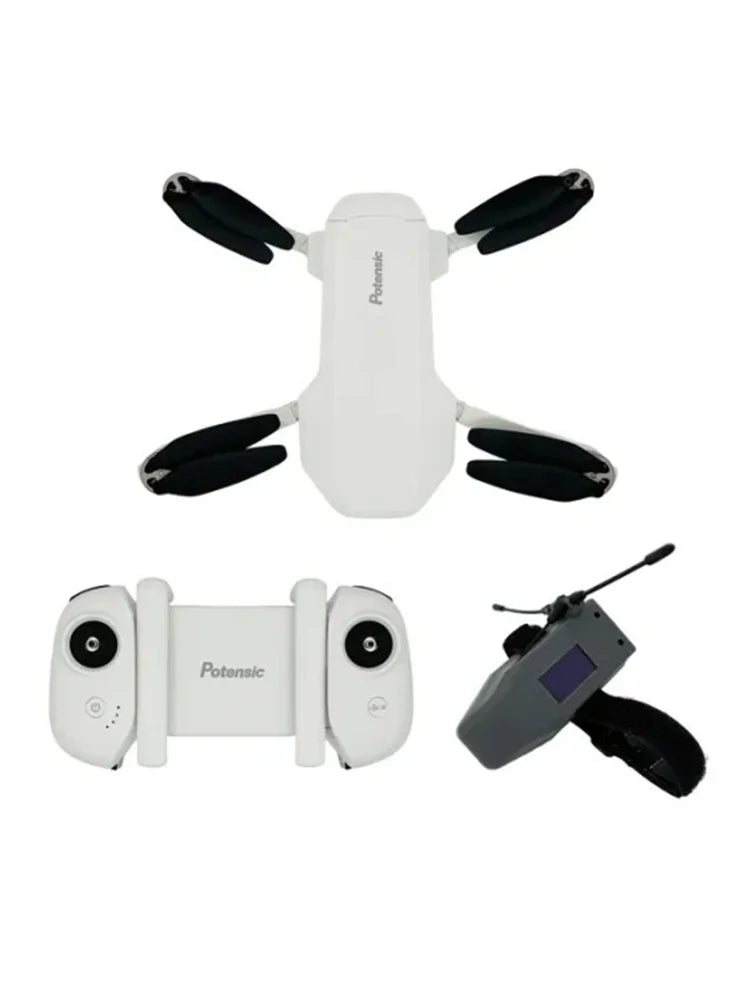

What’s Included:

• Raven UAS Airframe

• Spec5 Copilot Airborne Mesh Module

• Flight Battery & Charger

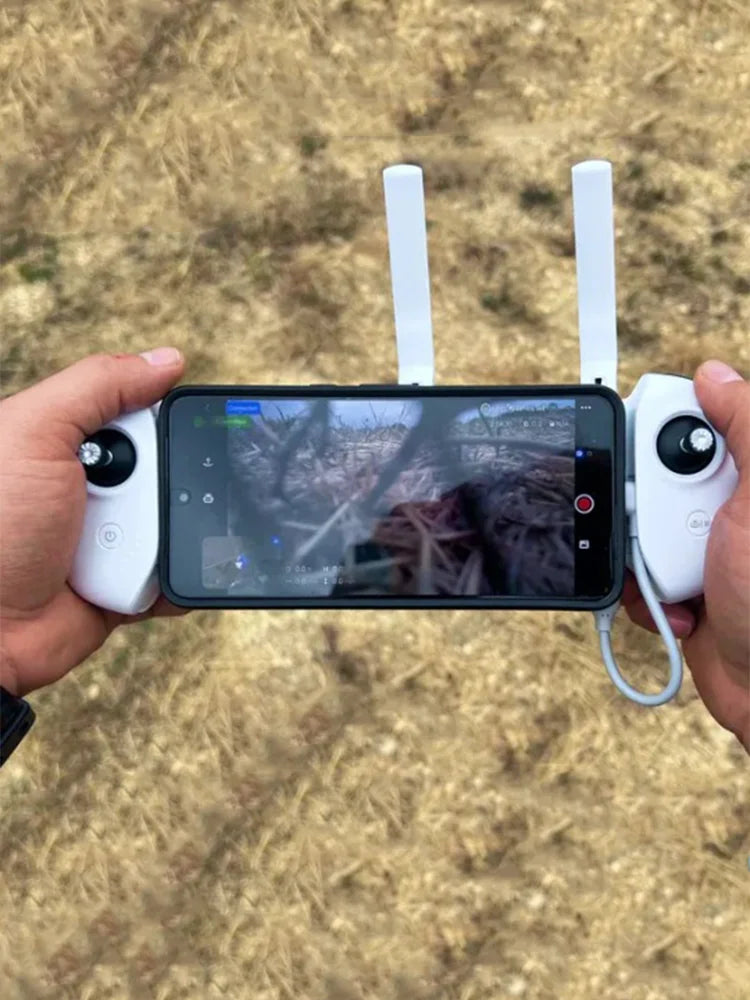

• Ground Controller

• Replacement Propellers

• Quick-Start Documentation

Use Cases:

• Mesh Network Range Extension: Deploy as an aerial repeater to improve LoRa mesh coverage in complex terrain.

• Aerial Reconnaissance & Overwatch: Capture stabilized video and still imagery for observation and documentation.

• Search & Rescue Support: Provide elevated visual assessment and temporary communication bridging.

• Emergency Response & Disaster Recovery: Maintain off-grid situational awareness when infrastructure is compromised.

• Training & Experimental Deployments: Ideal for testing aerial mesh networking and communications integration.

Important Notes:

• Operation is subject to local aviation and RF regulations.

• Mesh performance depends on altitude, terrain, and network configuration.

• Raven UAS does not require cellular or internet connectivity for mesh relay functionality.
